Installing flywheel (manual gearbox)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Heavy component
.
Heavy components can lead to injury or damage .
Heavy components can lead to injury or damage .
- Remove and install heavy components with the aid of another person/other persons.
NOTE:
TECHNICAL INFORMATION

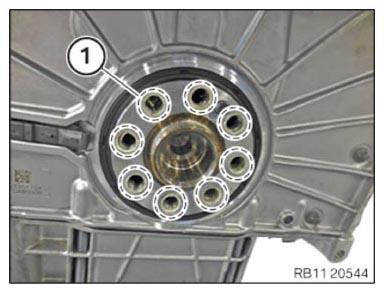

Clean all threads with a screw tap.
Clean all threads with a screw tap.
- Clean all the screw threads (1)
.

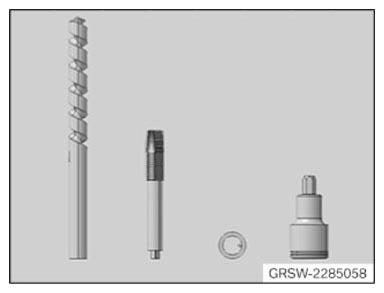

- Use set of special tools 2 285 058
.
Description Twist drill Thread cutter M12x1.5 Deep stop Screw in tool - Assemble tool set.

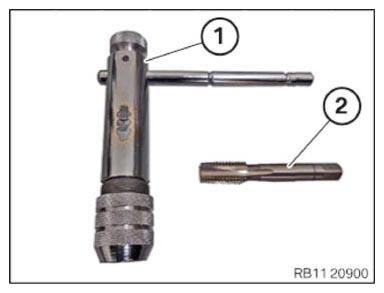

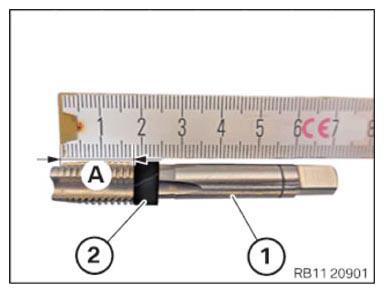

Number Description 1 Tool holder 2 Thread cutter M12X1.5 - Mark the insertion depth (A)
on the thread cutter (1)
from the set of special tools 2 285 058
with a standard tool (2)
.TECHNICAL DATA SPECIFICATION
Screw-in depth of thread cutter Screw-in depth 18 mm NOTE: To provide a better overview: Shown with engine removed. - Screw in the thread cutter (1)
from the set of special tools 2 285 058
up to the screw-in depth (2)
in the arrow direction.TECHNICAL DATA SPECIFICATION

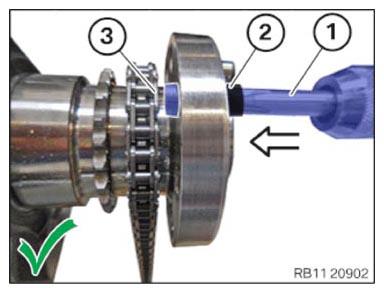

Screw-in depth of thread cutter Screw-in depth 18 mm - Make sure that the thread cutter is (1)
not pressed up against the timing chain (3)
.NOTE: TECHNICAL INFORMATION
Handle the timing chain carefully to protect the timing chain and timing chain drive from damage. - Make sure that the screw-in depth (2)
of the screw tap (1)
is not exceeded.

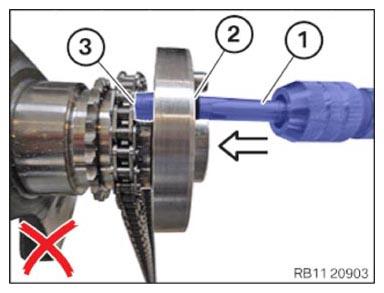

The thread cutter (1) must not come into contact with the timing chain (3) .

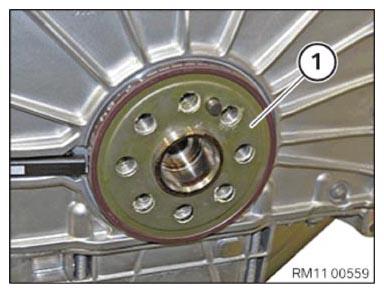

- Note the installation position of the magnet wheel (1) .
- Position the magnet wheel (1)
on the crankshaft.

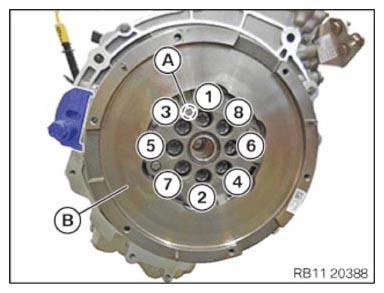

- Position the flywheel (B) .
- Replace flywheel bolts (1)
to (8)
.
Parts: Flywheel bolts
- Screw in new flywheel bolts by hand with the special tool 0 491 018 (11 4 180) .
- Make sure that the tightening sequence starts with the dowel pin (A) .
- Tighten the new flywheel bolts in order from (1)
to (8)
using special tool 0 491 018 (11 4 180)
(note the angle of rotation in the next step).TIGHTENING TORQUE SPECIFICATIONS
Flywheel to crankshaft M12x1.5

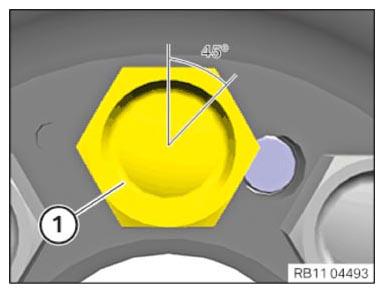

Replace screws.Tightening torque 45 Nm Angle of rotation 45° - Apply all flywheel bolts (1)
with an angle of rotation of 45° by using the special tool 0 490 504 (00 9 120)
.NOTE: Mark all the flywheel bolts (1) with a vertical line.

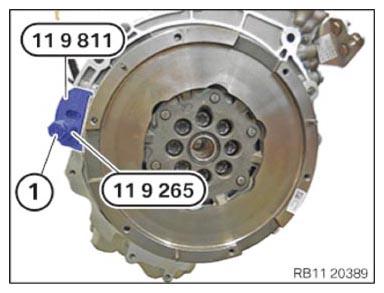

- Remove special tool 0 493 938 (11 9 260)
.
- Loosen the transmission bolt (1) .
- Feed out and remove special tools 0 494 793 (11 9 265) and 0 496 171 (11 9 811) with the conventional 5 mm washer .
