Install the transfer box (VTG)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

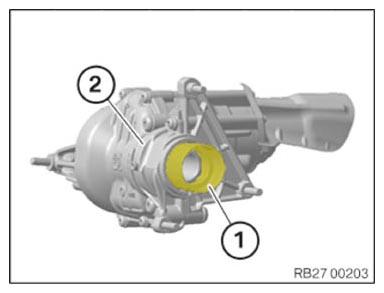

- Replace the intermediate shaft (1)
and the radial shaft seals in the automatic transmission if the intermediate shaft (1)
gets stuck on the transfer box (VTG).

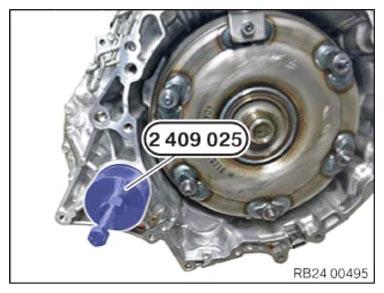

- Screw special tool 2 409 025 into the outer radial shaft seal.
- Turn the screw on the special tool 2 409 025
until the outer radial shaft seal has been pulled out.

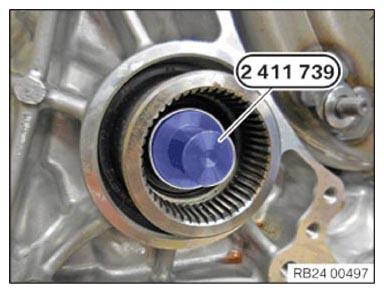

- Insert special tool 2 411 739
into the inner radial shaft seal.

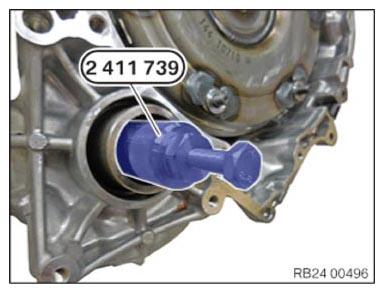

- Screw special tool 2 411 739 into the inner radial shaft seal.
- Turn the screw on the special tool 2 411 739
until the inner radial shaft seal has been pulled out.

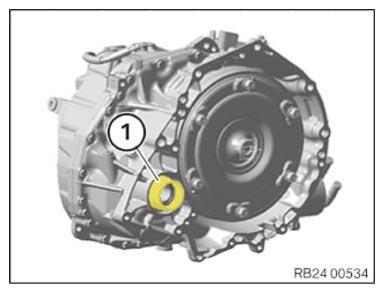

- If necessary, attach the new intermediate shaft (1)
on the output flange of the automatic transmission.

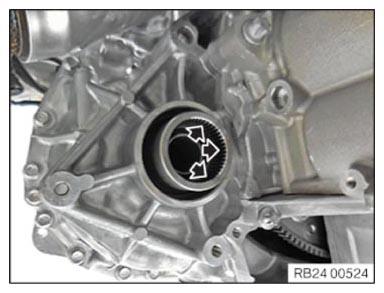

- Evenly coat the inside of the output flange with about 5 g grease.CONSUMABLE SPECIFICATION
Lubricating grease Optitemp HT 1 LF 50 g, Tube 83230417754 - Install the transfer box (VTG).

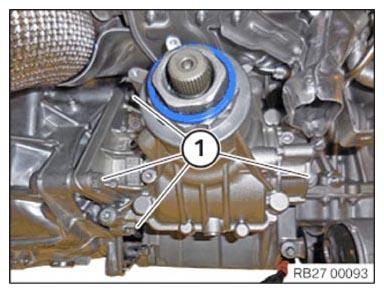

- Tighten the screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Transfer box to transmission | ||
|---|---|---|
| M10 | tightening torque | 56 Nm |
