Install the intermediate shaft with the support tube

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

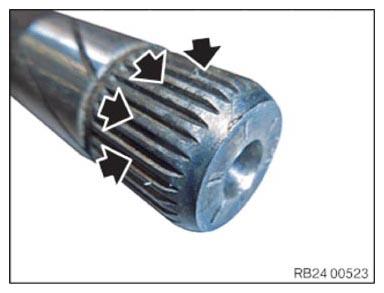

Coat gearing of the intermediate shaft uniformly with 5 g of grease.
CONSUMABLE SPECIFICATION

Lubricating grease Optitemp HT 1 LF 50 g, Tube 83230417754

Courtesy of BMW OF NORTH AMERICA, INC.
Install the intermediate shaft with support tube (1) in the transfer box.

Courtesy of BMW OF NORTH AMERICA, INC.
Position screws (1) .
NOTE: Check for correct screw length! Bolt M8x35 8.8

Tighten the screws (1) .

TIGHTENING TORQUE SPECIFICATIONS

Intermediate shaft to transfer box
M8x35	tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

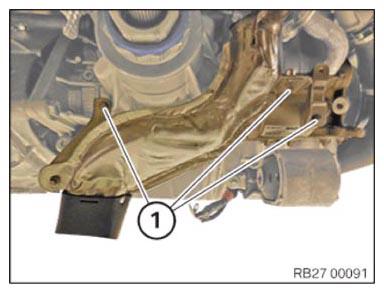

Install air duct.
Tighten the screws (1) .

Courtesy of BMW OF NORTH AMERICA, INC.
