Fit the seat cover with the upholstery for the front seat
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

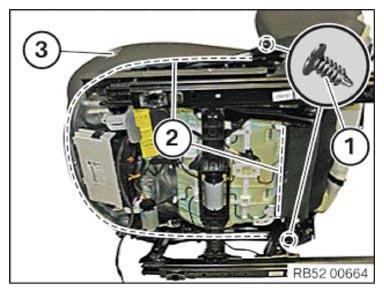

- Insert seat cover (3) with the cushion and position.
- Engage edge stripping in marked area (2).
- Secure the clips (1).

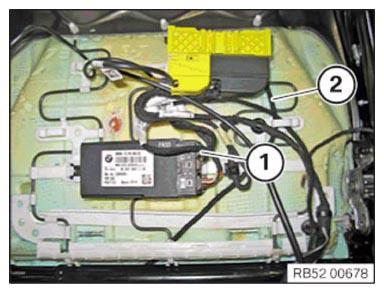

- Version with seat heating only:
- Feed in cable (2).
- Connect plug connection (1) and lock.

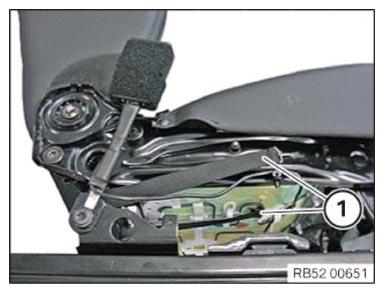

- Secure retaining strap (1) on left and right to seat mechanism.

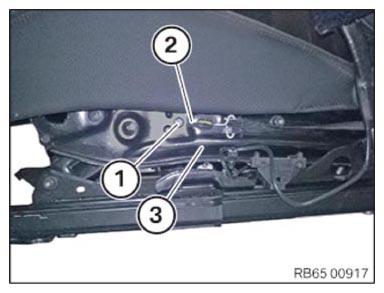

Securing ground cable of the seat occupancy mat (CIS)
- Position the ground cable (2) for the seat occupancy mat on the left side of the seat mechanism (3) correctly.
- Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATIONS
| Ground cable of the seat occupancy mat (CIS) on seat | ||
|---|---|---|
| Screw | Tightening torque | 4.5 Nm |
