Installing the side sill trim panel

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

If applicable, replace the faulty screws and associated fixture (1).

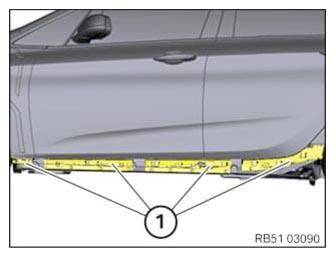

Check the latch mechanisms of the mountings (1) and the side sill trim panel for damage, replace if necessary.
The latch mechanisms of the mountings (1) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.
Install the side sill trim panel (1) and clip in along dotted line.
Clip in the side sill trim panel (1) at the clip (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Mount the expanding rivets (1).
Mount the clip (2).

Tighten down screw (3).

TIGHTENING TORQUE SPECIFICATIONS

Undershield, side
Hexagon screw	tightening torque	2.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to PARTIALLY INSTALLING THE REAR WHEEL ARCH TRIM .
Refer to INSTALLING THE REAR DOOR .
