Installing the seal for the tailgate

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

Remove the residual sealant on the body.
Clean the fold with solvent cleaner R2.
CONSUMABLE SPECIFICATION

Cleaning agent R2 500 ml 83190417324

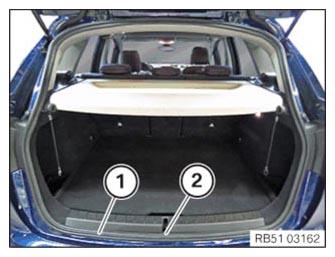

Replace the seal (1).
Parts: Seal

The seal (1) must be replaced, otherwise leak-tightness is not guaranteed.
Feed in the seal (1) from the sealing joint (2) starting behind the bumper panel and connect on the fold.
Ensure correct fit of seal (1) on all adjacent components.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING BOTH TRIM PANELS FOR THE WATER GUTTER .
