Installing the trim for the top rear window frame

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

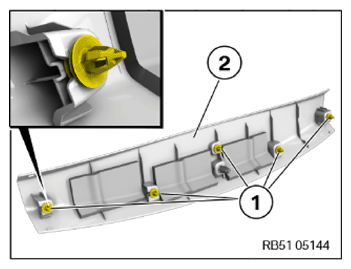

Check the clips (1) on the trim (2) for the top rear window frame for damage and replace if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Check

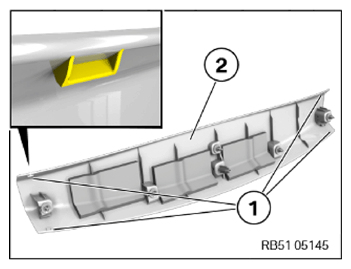

Check the latch mechanisms (1) on the trim (2) for the top rear window frame for damage,

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» The latch mechanisms (1) on the trim (2) for the top rear window frame are damaged.

Measure
- Replace the trim (2) for the top rear window frame.

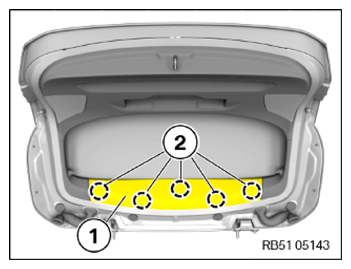

Clip in the trim (1) for the top rear window frame with the clips (2).

Courtesy of BMW OF NORTH AMERICA, INC.
