Removing the trim for the rear window frame on the side

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Description is for left component only. Procedure on the right side is identical.

Preliminary work

Refer to REMOVING THE TRIM FOR THE TOP REAR WINDOW FRAME .

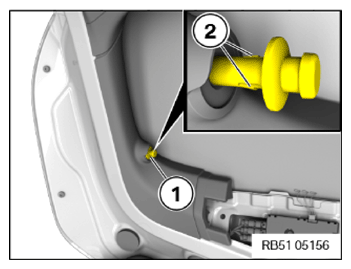

Detach the mounting button (1) on the latch mechanisms (2) and remove it.

Courtesy of BMW OF NORTH AMERICA, INC.

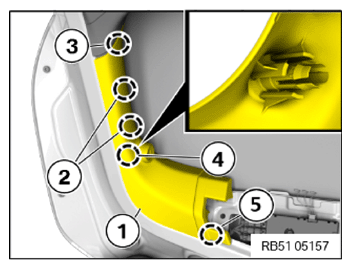

Unclip the trim (1) for the rear window frame on the side with the clips (2) from the locks (3), (4) and (5).

Courtesy of BMW OF NORTH AMERICA, INC.
