Remove the upper B-pillar trim panel
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Description is for left component only. Procedure on the right side is identical.
Preliminary work
- Refer to REMOVING THE FRONT STRAP FITTING .

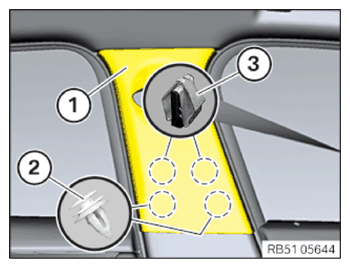

- Carefully release the B-pillar trim panel (1) from the clips (2) and the clamps (3) with the special tool 0 496 569 (00 9 325) and guide it out of the headlining in a downwards direction.
- Remove the B-pillar trim panel (1)
and, when doing so, guide out the seat belt.
