Installing side trim panel in the footwell at A-pillar
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

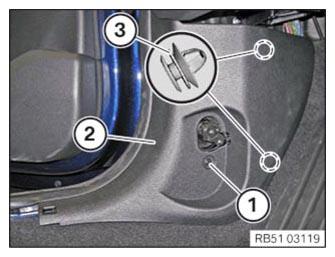

- Position the side trim panel (2) and clip it to the clips (3).
- Make sure the edge protection on the side trim panel (2) fits correctly.

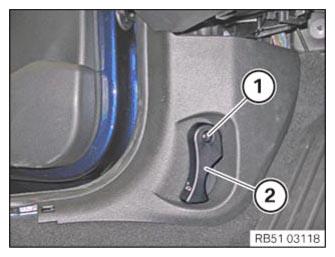

- Tighten down screw (1).TIGHTENING TORQUE SPECIFICATIONS
Side trim panel bottom left to holder Screw Tightening torque 3 Nm - Install lever for the hood release (2) l.
- Tighten down screw (1).TIGHTENING TORQUE SPECIFICATIONS
Lever for hood release to the holder Screw Tightening torque 3 Nm
Follow-up work
- Refer to INSTALLING THE FRONT DOOR SILL COVER STRIP .
