Installing the brake fluid level switch

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

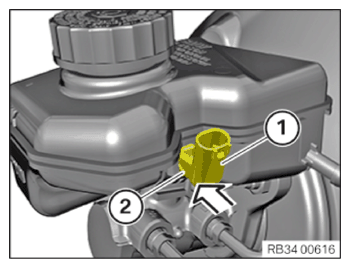

Install the brake fluid level switch (1) into the expansion tank in direction of arrow.
The retaining lug (2) must lock correctly.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect the plug connection (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Install the water drain channel (1).

G11648459

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING FRONT WINDSHIELD PANEL COVER .
Refer to INSTALLING THE REAR HOOD SEAL .
