Remove side airbag from front seat
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.

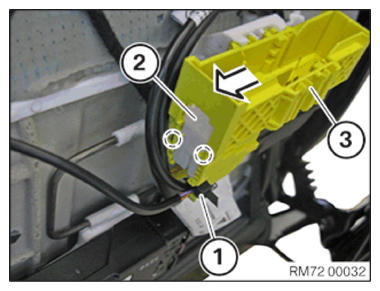

- Release cable tie (1) .
- Carefully unlock the detents (markings).NOTE: TECHNICAL INFORMATION
Different variants maybe installed depending on the vehicle equipment. - Thread the matching connector plugs (2) in the direction of the arrow out of the connector plug housings (3) .

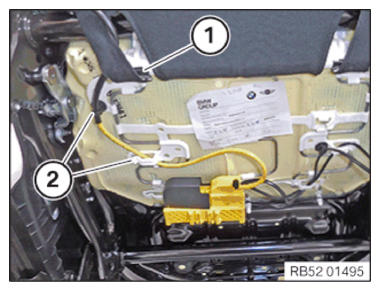

- Unclip the seat cover (1) with the special tool 0 496 571 (00 9 327) .
- Unclip the cable and cable holders (2)
.

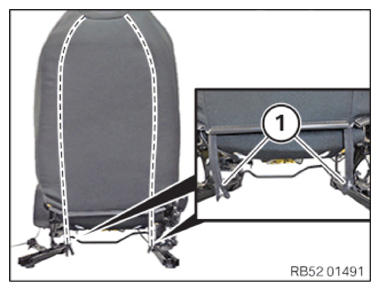

- Using the special tool 0 496 571 (00 9 327)
, unclip the backrest cover (1)
in the marked area.

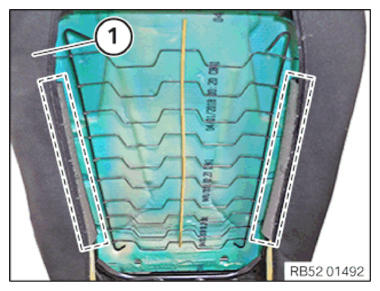

- Open the zips (1)
in the marked area.

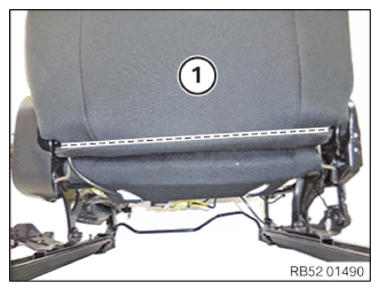

- Using the special tool 0 496 571 (00 9 327)
, unclip the backrest cover (1)
in the marked area.

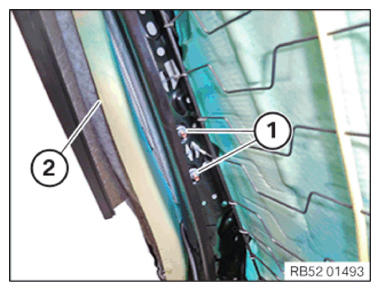

- Loosen nuts (1) .
- Fold the backrest cover with the cushion (2)
to the side.

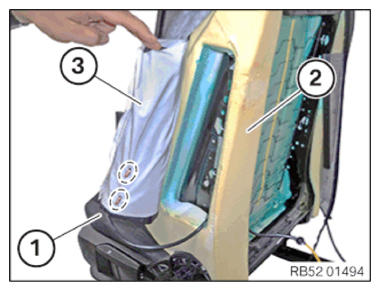

- Carefully fold out the side airbag (1) from the cushion (2) .
- Carefully guide out the side airbag (1)
from the pocket in the cover (3)
.
Ensure that the stud bolts (markings) do not damage the pocket in the cover.
- Guide out the side airbag (1)
from the cushion (2)
and set aside.
