Remove exhaust turbocharger
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
RISK OF DAMAGE
Damage of the electric wastegate valve controller .
Excessive force when removing and installing a jammed exhaust turbocharger may damage the electric wastegate valve controller .
Damage of the electric wastegate valve controller .
Excessive force when removing and installing a jammed exhaust turbocharger may damage the electric wastegate valve controller .
- Do not pull on the electrical wastegate valve controller or on the coupling rod.
- Apply force only at the turbine housing and exhaust manifold.
- Do not pull on the compressor housing.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

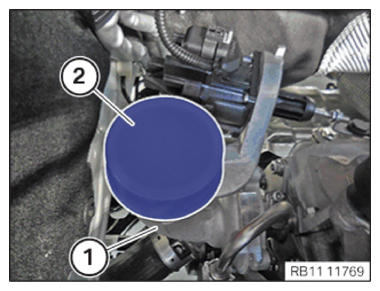

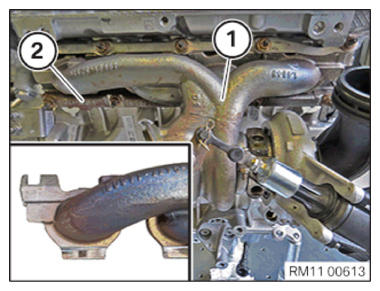

- Close the exhaust turbocharger (1)
with a standard tool (2)
.

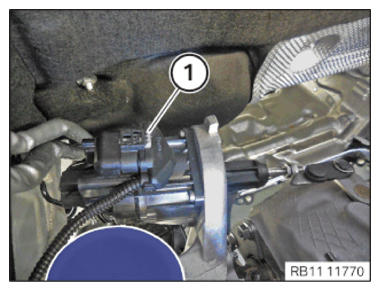

- Unlock plug connection (1)
and disconnect.

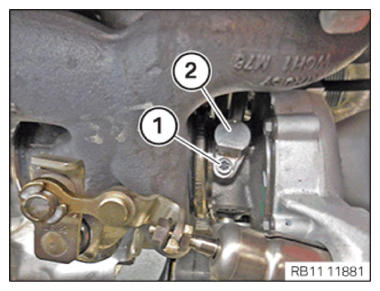

- Loosen screw (1) .

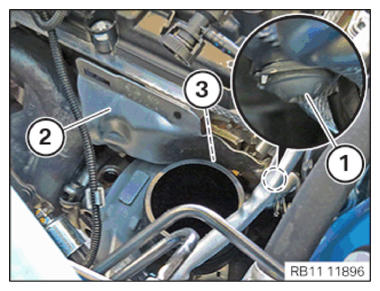

- Guide the heat shield (2)
out of the holder (3)
and remove.

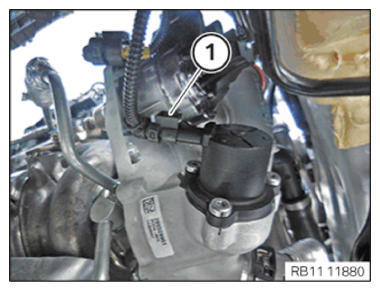

- Unlock plug connection (1)
and disconnect.

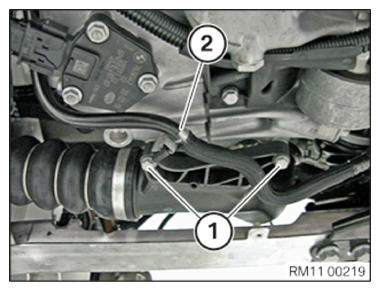

- Loosen screws (1) .
- Guide the line (2)
out and set it aside.
- Lock the locks (1)
in place in the holder in the arrow direction.

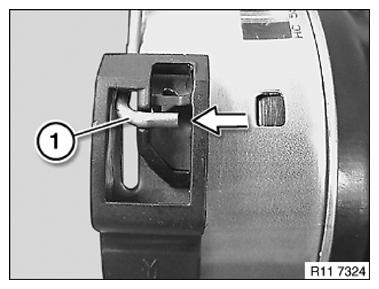

- Unlock and disengage lock mechanisms (1) on both sides.

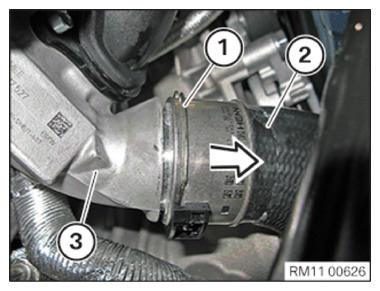

- Feed out the pressure pipe (2)
in the arrow direction from the exhaust turbocharger (3)
and set aside.
- Loosen screw (1) .

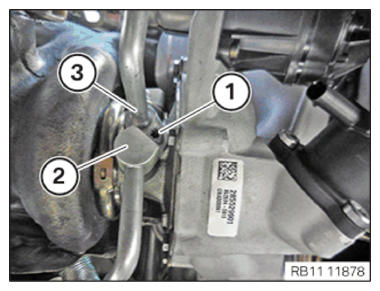

- Guide out the coolant feed line (2) and set aside.
- Guide out the coolant return line (3) and set aside.
- Catch and dispose of escaping coolant.
- Loosen screw (1) .
- Guide out the oil feed line (2) and set aside.
- Catch and dispose of emerging engine oil.NOTE: TECHNICAL INFORMATION
Exhaust manifold/exhaust turbocharger is not bolted to the underside, but clamped instead. When removing/replacing the exhaust manifold/exhaust turbocharger, the trim strip remains screwed on. - Ensure that the trim strip (2)
remains screwed in place when removing the exhaust turbocharger (1)
.
The exhaust turbocharger (1) is not bolted to the underside, but clamped instead in the trim strip (2) .

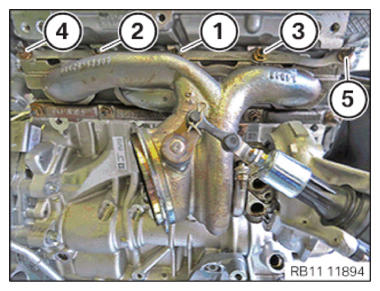

- Release the nuts in the order from (5) to (1) .

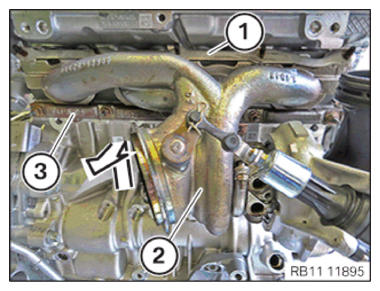

- Guide out and remove the sliding frame (1) .
- Feed the exhaust turbocharger (2)
out of the trim strip (3)
in arrow direction.CAUTION: Heavy component .
Heavy components can lead to injury or damage .- Remove and install heavy components with the aid of another person/other persons.

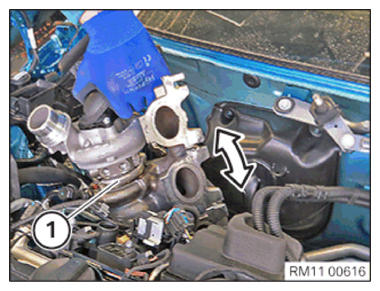

- Guide the exhaust turbocharger (1) upwards and out and remove.

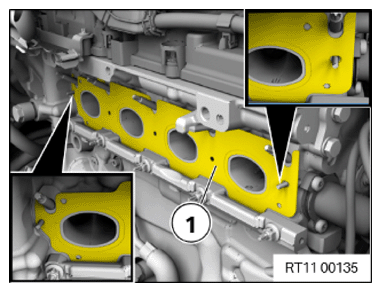

- Guide out the seal (1)
at the cylinder head and remove.
