Installing the side airbag on the front seat (electric seat)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
- Guide side airbag (1) into cushion (2) .

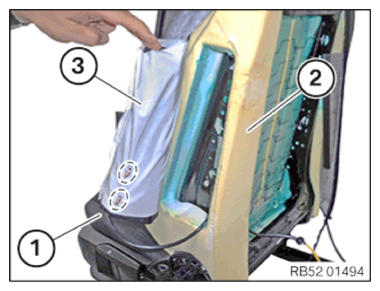

- Guide side airbag (1)
carefully into the pocket in cover (3)
.
Ensure that the stud bolts (marks) do not damage the pocket in the cover.
- Correctly position the side airbag (1)
in the cushion (2)
.
- Correctly position the backrest covering with the cushion (2) .

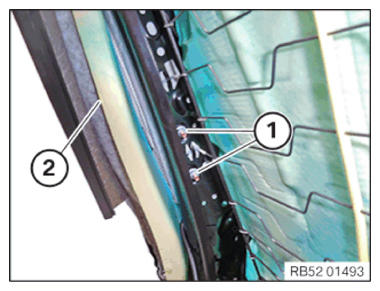

- Replace nuts (1)
.
Parts: Nuts
- Tighten nuts (1)
.Tightening torques

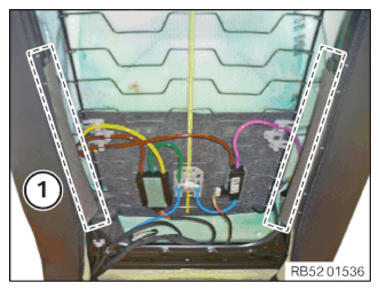

Side airbag to backrest frame Nut Replace nuts. tightening torque 6.5 Nm - Correctly position the backrest covering (1)
within the marked area and clip it into place.

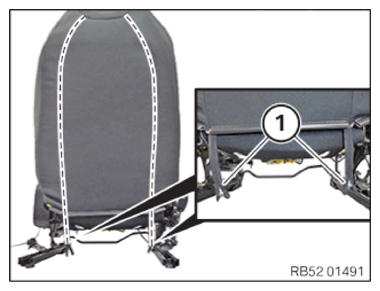

- Using the special tool 0 490 472 (00 5 020)
, close the zippers (1)
in the marked area.

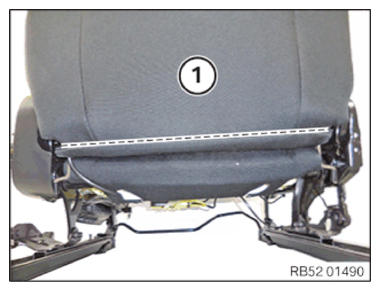

- Correctly position the backrest covering (1)
within the marked area and clip it into place.

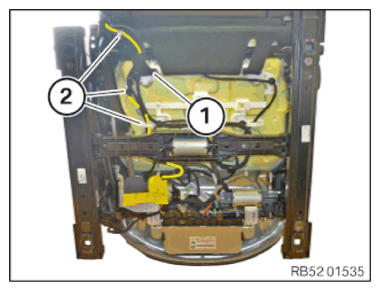

- Clip in the cable and cable holders (2) .
- Clip in the seat cover (1)
.NOTE: TECHNICAL INFORMATION

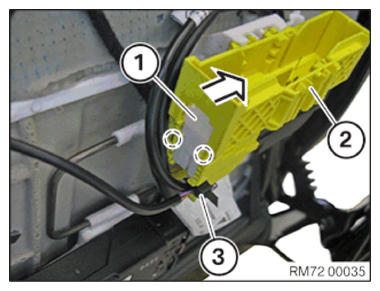

Different variants may be installed depending on the vehicle equipment. - Guide the associated connectors (1) into the connector housing (2) and clip them in.
- Fasten the cable (3)
on the connector housing (2)
using a cable tie.
