Adjusting rear axle (X2 2018-2023)
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2023 BMW X2, 2022 BMW X2, 2021 BMW X2, 2020 BMW X2, and 2019 BMW X2. However, it is still accessible from the selected car via links, so may be relevant.
Special tools required:
- 32 4 200
NOTE:
A camber change always means a toe change as well. The camber must therefore be adjusted first.
If camber and toe-in are not adjustable within setpoint range: Troubleshooting at rear axle.
If camber and toe-in are not adjustable within setpoint range: Troubleshooting at rear axle.
Adjusting camber:

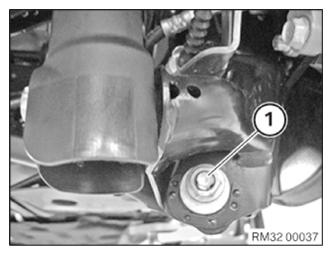

Replace nut (1) prior to eccentric bolt adjustment and tighten to 5 Nm.

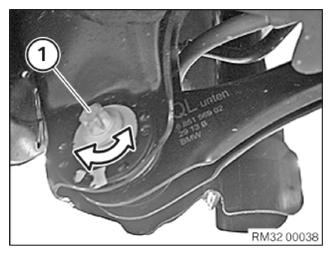

Turn screw (1) and adjust camber to setpoint value.
Tighten nut (1).
Parts: Replace screw and nut
Tightening torque 33 32 2AZ .
Adjusting toe:

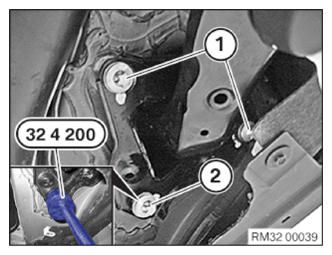

Replace the screw (1) and nut (2) and tighten with about 5 Nm.
Mount special tool 32 4 200 on screw (2).
Turn special tool 32 4 200 and adjust toe-in to setpoint value.

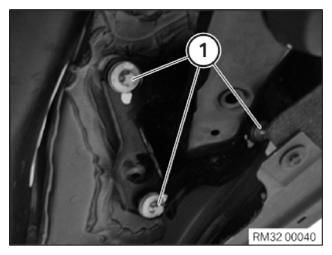

Tighten down screws (1).
Parts: Replace screws
Tightening torque 33 32 5AZ .
