Tighten the screw connection of the oil pump

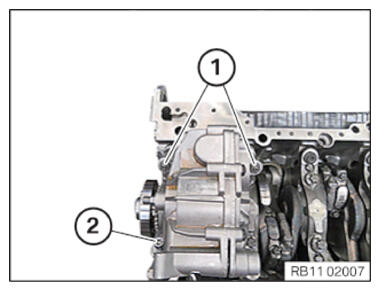

• Tighten down screw (2)  .

TIGHTENING TORQUE SPECIFICATIONS

Oil pump to oil sump upper section
M8x90	Tightening torque	24 Nm

• Retighten the nut (1)  .

TIGHTENING TORQUE SPECIFICATIONS

Oil pump to oil sump upper section
M8x90	Tightening torque	24 Nm
