Attaching the thermostat or transmission oil cooler line on the front subframe
NOTE:
TECHNICAL INFORMATION
Different variants may be installed depending on the vehicle equipment.
Different variants may be installed depending on the vehicle equipment.
Version A: Attaching the thermostat or transmission oil cooler line on the front subframe

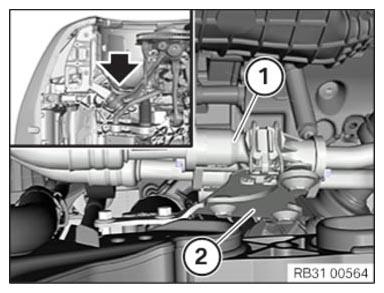

- Attach the thermostat (1) for the transmission oil cooling on the holder (2) .
Version B: Attaching the thermostat or transmission oil cooler line on the front subframe

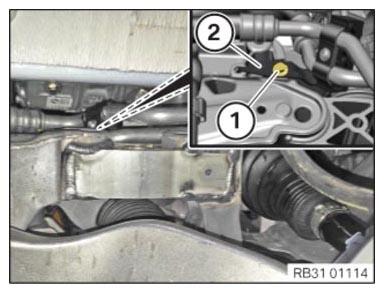

- Position the holder (2) for the transmission oil cooler lines on the front subframe.
- Tighten down screw (1)
.TIGHTENING TORQUES SPECIFICATION

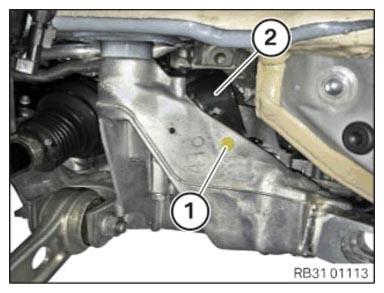

Holder for transmission oil cooler lines on front subframe M6 tightening torque 8 Nm - Position the holder (2) for the transmission oil cooler lines on the front subframe.
- Tighten down screw (1) .
TIGHTENING TORQUES SPECIFICATION
| Holder for transmission oil cooler lines on front subframe | ||
| M6 | tightening torque | 8 Nm |
