Remove flap in luggage compartment trim panel on right

WARNING: High-voltage system.
The high-voltage system operates on the basis of hazardous, electrical voltage and high currents. Mortal hazard through electric shock!

All work on the high-voltage system may only be carried out by specially trained and technically experienced personnel.
For additional information see:
61 00... SAFETY INSTRUCTIONS ON HANDLING HYBRID CARS .
For additional information see:
61 25... NOTES ON REPAIR OF HIGH-VOLTAGE BATTERY UNIT .

NOTE: TECHNICAL INFORMATION
Zero voltage (high-voltage system switched-off) is only displayed with in PAD mode.

Preliminary work

Follow-up work

Remove flap in luggage compartment trim panel on right

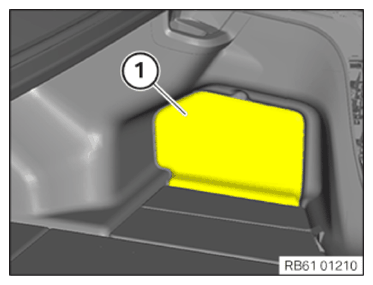

Open and remove the flap (1).

Courtesy of BMW OF NORTH AMERICA, INC.

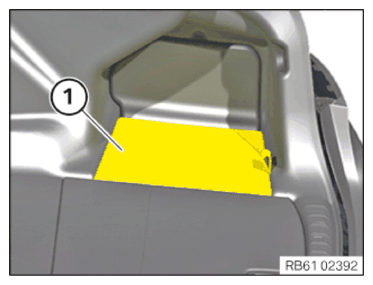

Remove the cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

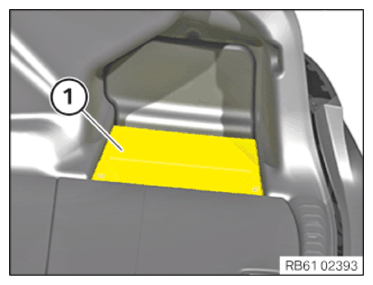

Remove the insert shell (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Remove right luggage compartment trim panel

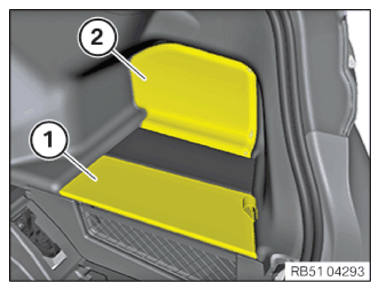

Remove the cover (1) to the top.
Remove the cover (2) to the inside.

Courtesy of BMW OF NORTH AMERICA, INC.

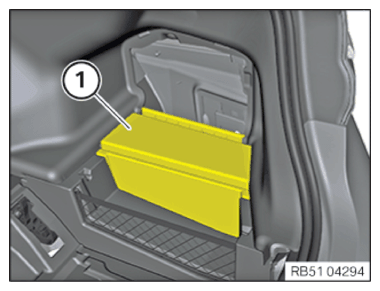

Remove the luggage compartment trim panel (1) to the top.

Courtesy of BMW OF NORTH AMERICA, INC.
