Remove the starter motor (acoustic cover removed)

Precondition

Battery ground lead is disconnected.

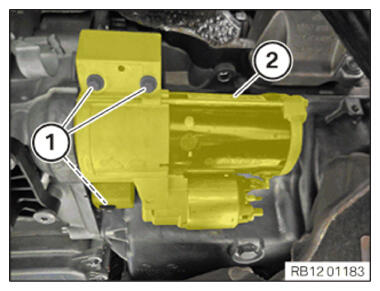

• Protect the starter motor (2)  from falling and release the screws (1)  .
• Remove the starter motor (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.
