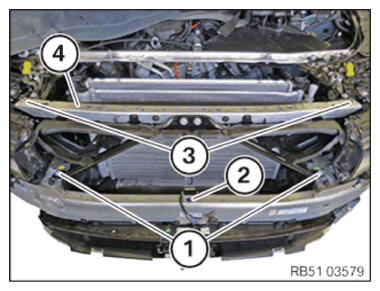

Install the front top cross connection with the reinforcement strut
- Install the top front cross connection (4) together with the reinforcement strut.
- Replace screws (1)
.
Parts: Screws
- Tighten down screws (1) .
TIGHTENING TORQUE SPECIFICATIONS
| Front reinforcement strut | ||
|---|---|---|
| screw Replace screws. |
Tightening torque | 19 Nm |
- Tighten down screw (2) .
TIGHTENING TORQUE SPECIFICATIONS
| Front Y-strut to cross connection and/or bumper bracket | ||
|---|---|---|
| M6x20 screw | Tightening torque | 11.8 Nm |
- Tighten down screws (3) .
TIGHTENING TORQUE SPECIFICATIONS
| Top front cross connection to hood lock support | ||
|---|---|---|
| screw | Tightening torque | 19 Nm |
- Fold down the trim panel (1) and hook it into the guide at the lever (2) facing to the front.
- If necessary, clip the associated grille into the trim panel (1) .
