Installing the LED module from the ventilation grille in the left decorative strip

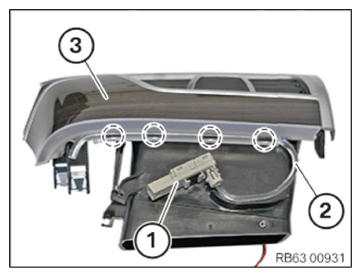

• Clip in the LED module (1)  in the fiber-optic conductor (2)  .
• Clip LED module (1)  into holder.
• If necessary, clip the fiber-optic conductor (2)  into the detents of the decorative strip (3)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

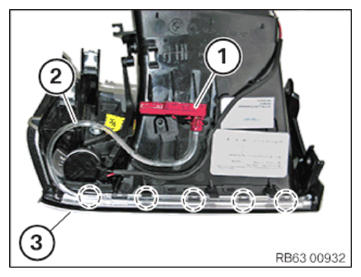

• Clip in the LED module (1)  in the fiber-optic conductor (2)  .
• Clip LED module (1)  into holder.
• If necessary, clip the fiber-optic conductor (2)  into the detents of the decorative strip (3)  .

Courtesy of BMW OF NORTH AMERICA, INC.
