Installing the support for the front bumper cover at the bottom

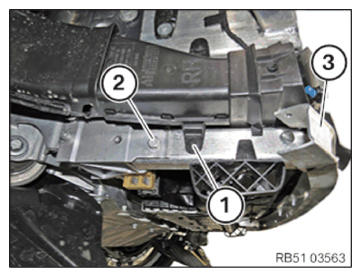

• Feed in the support for the bumper cover at the bottom front (3).
• Tighten down screw (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Bottom support on front axle support adapter
  M8x75 screw	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install the expanding rivet (1).
  NOTE: Description is for right component only. The procedure on the left side is identical.

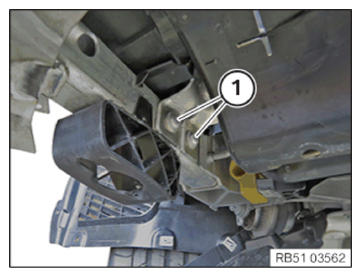

• Tighten the screws (1).
  TIGHTENING TORQUE SPECIFICATIONS



  Support on vertical connection
  M6x20 screw	Tightening torque	11.8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

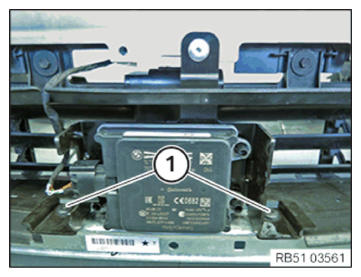

• Tighten the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING BUMPER COVER, FRONT  .
• Refer to INSTALLING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
• Refer to INSTALLING FRONT ORNAMENTAL GRILLE .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT CENTER .
• Refer to INSTALLING FRONT SECTION OF THE FRONT WHEEL ARCH COVER (PARTIALLY REMOVED) .
