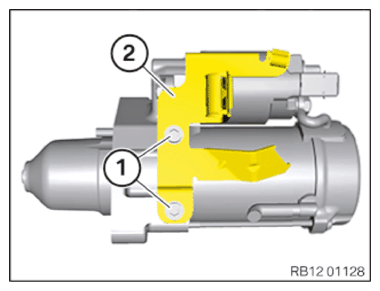

Replacement: Rebuild the holder
- Loosen screws (1)
.
- Remove holder (2)
.
- Fasten holder (2)
onto the new starter motor.
- Tighten the screws (1)
.
TIGHTENING TORQUE SPECIFICATIONS
| Holder to starter motor |
| M6x14 |
tightening torque |
10 Nm |
 Courtesy of BMW OF NORTH AMERICA, INC.
|
