Installing the electrical machine electronics

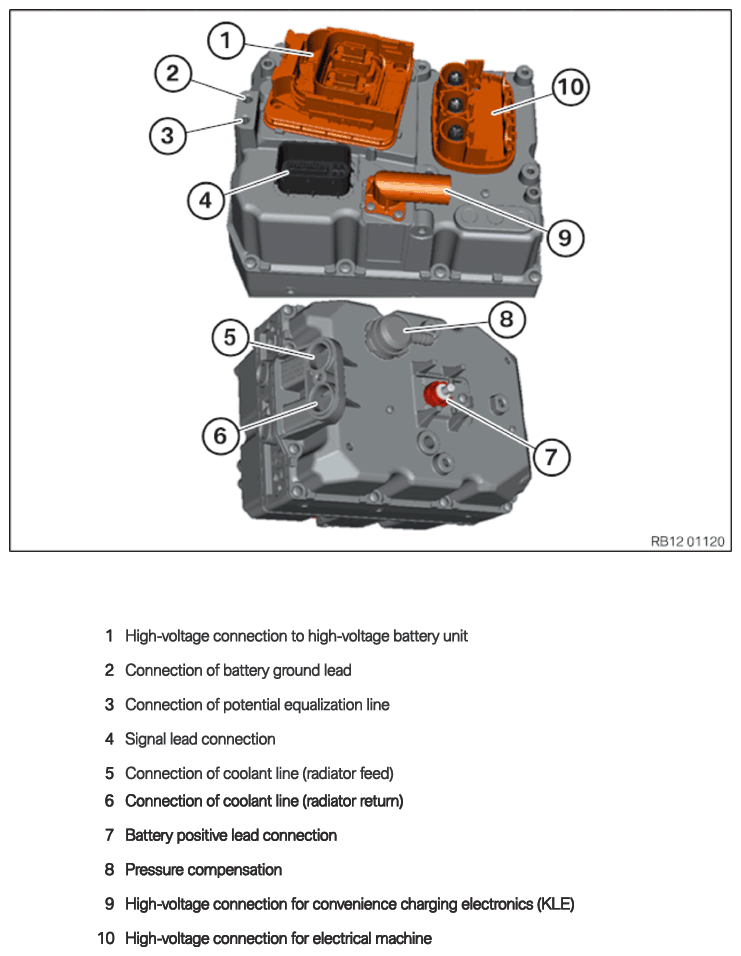

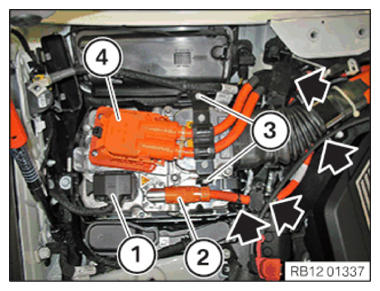

Connection overview for electrical machine electronics (EME)

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

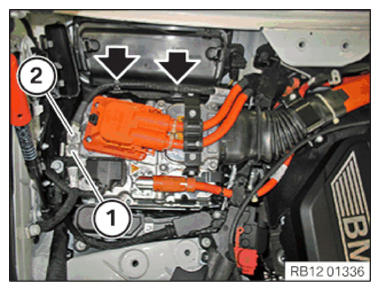

• Carefully feed the EME into the components compartment and position it.
• Tighten the screws and clip the covers (2)  into the components compartment.

Holder for electrical machine electronics to units compartment Renew screws.
M6x16	Tightening torque	12 Nm
	Angle of rotation	90°

• Tighten down screw (1)  .

Holder for electrical machine electronics to body Renew screws.
M8x20	Tightening torque	28 Nm
	Angle of rotation	90°

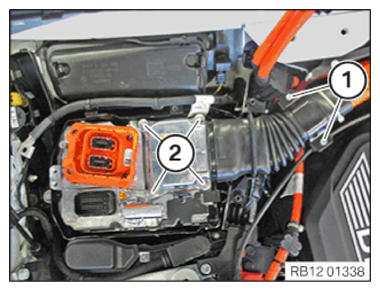

Install the cover for the fresh air inlet

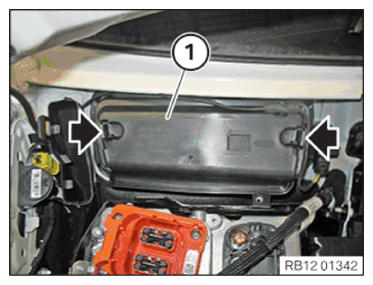

• Install the cover for the fresh air inlet (1)  .

  The cover for the fresh air inlet (1)  must audibly snap into place.

Courtesy of BMW OF NORTH AMERICA, INC.

• Replace O-ring.

  Parts:  O-ring.

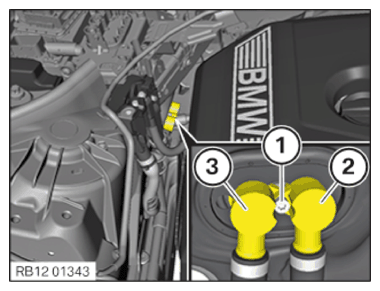

• Connect coolant line (3)  to the electrical machine electronics.
• Replace O-ring.

  Parts:  O-ring.

• Connect coolant line (2)  to the electrical machine electronics.
• Tighten down screw (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Coolant line to electrical machine electronics
M6x30	Tightening torque	8 Nm

Installing the front power distribution box

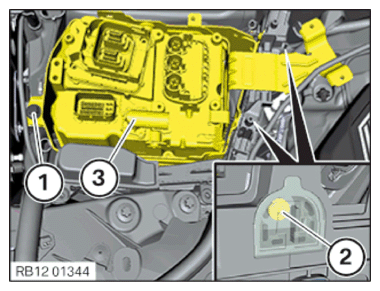

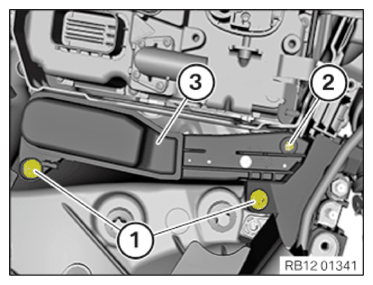

• Position the power distribution box (3)  .
• Tighten the screws (1)  .

Front power distribution box
M8x35 screw	28 Nm

• Tighten down screw (2)  .

Front power distribution box
Screw TS4x16	2.6 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

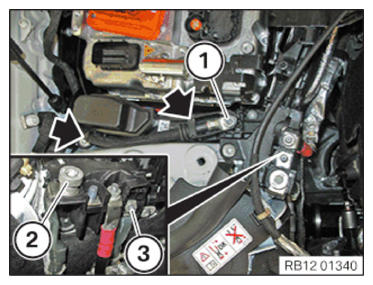

• Tighten nut (3)  with the positive wire on the power distribution box (3)  .

Positive battery cable
Positive pole screw	tightening torque	15 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten screw (2)  with the positive battery cable on the power distribution box (3)  .

Auxiliary terminal for jump starting
Flange nut M8	19 Nm

• Clip in grounding cable on the power distribution box and tighten nuts (1)  .

Positive battery cable
Positive pole screw	tightening torque	15 Nm

» The rubber grommet of the grounding cable must be installed correctly.

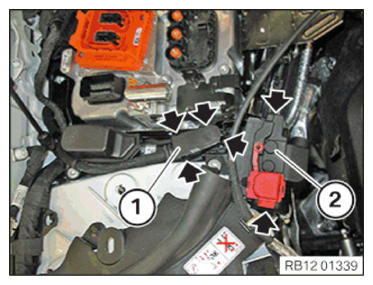

• Install cover (1)  and (2)  .

» Covers (1)  and (2)  must be correctly engaged.

Courtesy of BMW OF NORTH AMERICA, INC.

• Connect the connectors of the high-voltage cable so they are straight and tighten the screws (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

High-voltage cable to electrical machine electronics
M6x25	Tighten screws in crosswise sequence. Joining torque	3 Nm
	Tightening torque	8 Nm

• Position the upper section of the tension relief and tighten the screws (1)  .

Holder for tension relief
M6	tightening torque	8 Nm

• Insert the rubber grommet of the high-voltage cable (4)  into the components compartment.

• Connect and lock the connector of the high-voltage cable (4)  .
• Tighten screws (3)  from the tension relief.

Courtesy of BMW OF NORTH AMERICA, INC.

Holder for tension relief
M6	tightening torque	8 Nm

• Connect and lock the connector of the high-voltage cable (2)  .
• Clip in the high-voltage cable (2)  and insert the rubber grommet into the components compartment.
• Connect and lock the connector from signal line (1)  .

DANGER

Potential equalization in high-voltage system.

Mortal hazard if the potential equalization screw connection is not correct!

• Observe the safety requirements for the potential equalization screw connection.
• Clean contact faces and have then checked by a second person.
• Tighten the screws/nuts for potential equalization with torque; have a second person check the torque.
• Correct execution of these tasks must be documented in the vehicle records by both persons.

Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the screw (1)  of the potential equalization line.

Potential equalization line to electrical machine electronics Observe notes on earth bonding screw connections! See 61 20 BATTERY, GENERAL INFORMATION
M8x16	Tightening torque	19 Nm

DANGER

Potential equalization in high-voltage system.

Mortal hazard if the potential equalization screw connection is not correct!

• Observe the safety requirements for the potential equalization screw connection.
• Clean contact faces and have then checked by a second person.
• Tighten the screws/nuts for potential equalization with torque; have a second person check the torque.
• Correct execution of these tasks must be documented in the vehicle records by both persons.

• Tighten the screw (2)  of the battery ground lead.

Battery ground lead to electrical machine electronics Observe notes on earth bonding screw connections! See 61 20 BATTERY, GENERAL INFORMATION
M8x16	Tightening torque	19 Nm

• Clip in the battery ground lead.

Follow-up work

• Refer to CONNECT THE COOLANT LINE OF LOW-TEMPERATURE COOLANT CIRCUIT .
• Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
• Refer to FILL AND VENT THE LOW-TEMPERATURE COOLANT CIRCUIT .
• Refer to INSTALLING RIGHT SEALING FRAME .
• Refer to INSTALLING TENSION STRUT ON SHOCK TOWER .
• Refer to INSTALLING WINDSHIELD PANEL COVER .
• Refer to INSTALL LEFT AND RIGHT WIPER ARM .
• Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to INSTALL THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to TAKE HOOD OUT OF THE SERVICE POSITION .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
• Refer to ACTIVATE HIGH-VOLTAGE SYSTEM .
• Refer to INSTALL FLAP IN RIGHT LUGGAGE COMPARTMENT TRIM PANEL .
• Refer to INSTALLING THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
• Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
