Installing the ACC sensor

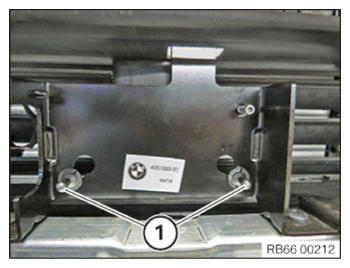

• Check holder (1) for damage; replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

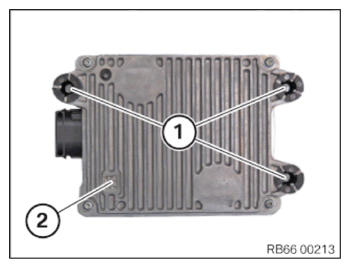

• Check the sleeves (1) on the ACC sensor (2) for damage; replace where required.

  Courtesy of BMW OF NORTH AMERICA, INC.

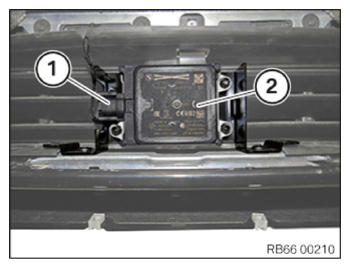

• Correctly position the ACC sensor (2) and engage it.
• Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING BUMPER COVER, FRONT .
• Refer to INSTALLING FRONT ORNAMENTAL GRILLE .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT CENTER .
• Refer to INSTALLING FRONT SECTION OF THE FRONT WHEEL ARCH COVER (PARTIALLY REMOVED) .
• Refer to ADJUSTING THE ACC SENSOR .
