Removing the radial shaft seal for the output to the front axle (ATC 13-1) (up to 11/2016)
WARNING: This page does not describe the selected car, but rather 26 other vehicles, including the 2023 BMW M550i xDrive, 2023 BMW 540i xDrive, 2023 BMW 530i xDrive, 2023 BMW 530e xDrive, and 2022 BMW M550i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Deactivate the 48 v ELECTRICAL SYSTEM .
- Disconnect all battery GROUND LEADS .
- Remove rear UNDERBODY PROTECTION .
- Remove the transmission side UNDERBODY PLANKING
- Remove the tunnel connecting SUPPORT .
- If installed: remove the right and left TORSION STRUT where required.
- Remove transmission CROSS-MEMBER .
- Remove the HEAT SHIELDS .
- Remove the RETAINING PLATES
- Partially loosen the PROP SHAFT
- Remove the TRANSFER BOX (ATC 13-1).
- Loosen band clamps (1).
- Remove bellows (2) from the protective cap (3).

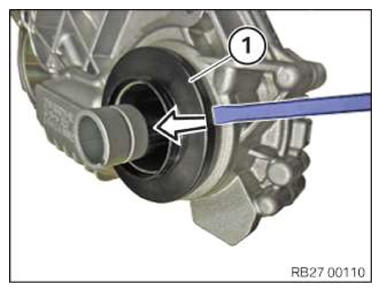

- Remove protective cap (1) using a screwdriver.NOTE: TECHNICAL INFORMATION
Do not use a drill.
Shavings can damage the transmission and result in failure of the transmission. - Drive a hole into the radial shaft sealing ring (1) using a center punch.
- Screw in special tool 0 491 454 (23 0 490) .
- Drive out the radial shaft seal (1) with the impact weight (2).
