Install the radial shaft seal for the output to the front axle (ATC 13-1) (until 11/2016)

WARNING: This page does not describe the selected car, but rather 26 other vehicles, including the 2023 BMW M550i xDrive, 2023 BMW 540i xDrive, 2023 BMW 530i xDrive, 2023 BMW 530e xDrive, and 2022 BMW M550i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: RISK OF DAMAGE
Damage to the transmission.
Damage to the transmission due to unapproved transmission oil.

Use only the approved TRANSMISSION OIL .
Check the transmission OIL LEVEL after completing the repair.

Drive in the radial shaft seal with special tools 2 412 858 and 2 413 037.

Courtesy of BMW OF NORTH AMERICA, INC.

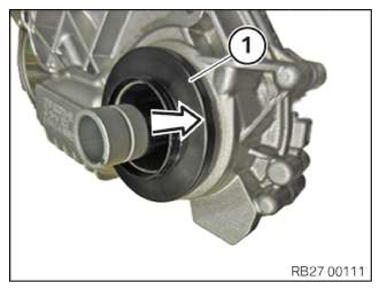

Replace protective cap (1).
Parts: prot. cap
Install the protective cap (1) evenly with a plastic hammer.

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the bellows (2).
Parts: gaiter
Replace band clamps (1).
Parts: Hose clamps

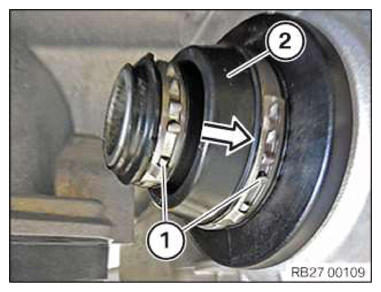

Install bellows (2).
Mount front and rear hose clamp (1) onto the bellows (2).

Courtesy of BMW OF NORTH AMERICA, INC.

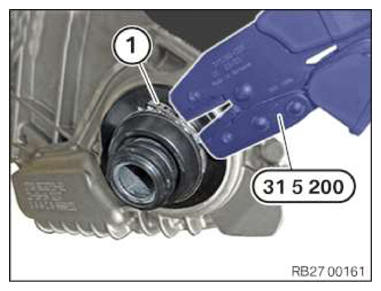

Attach the front and rear hose clamp (1) with the special tool 0 495 235 (31 5 200) .

Courtesy of BMW OF NORTH AMERICA, INC.
