Removing the radial shaft seal for the output to the front axle (ATC 13-1) (from 11/2016)

WARNING: This page does not describe the selected car, but rather 26 other vehicles, including the 2023 BMW M550i xDrive, 2023 BMW 540i xDrive, 2023 BMW 530i xDrive, 2023 BMW 530e xDrive, and 2022 BMW M550i xDrive. However, it is still accessible from the selected car via links, so may be relevant.

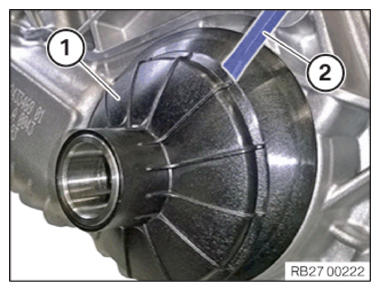

Use a slotted screwdriver to lever off the centrifugal disk (1) to the rear and remove.

Courtesy of BMW OF NORTH AMERICA, INC.

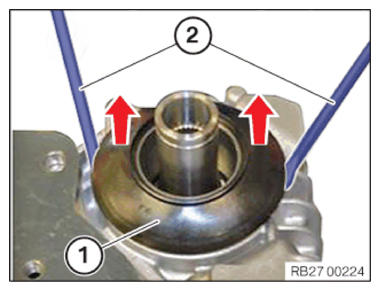

Remove the protective cap (1) upwards using 2 slotted screwdrivers (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Do not use a drill.
Shavings can damage the transmission and result in failure of the transmission.

Drive a hole into the radial shaft sealing ring (1) using a center punch.

Screw in special tool 0 491 454 (23 0 490).
Drive out the radial shaft seal (1) with the impact weight (2).

Courtesy of BMW OF NORTH AMERICA, INC.
