Remove the bellows or centrifugal disc on the transfer box (VTG) (ATC 13-1)
WARNING: This page does not describe the selected car, but rather 26 other vehicles, including the 2023 BMW M550i xDrive, 2023 BMW 540i xDrive, 2023 BMW 530i xDrive, 2023 BMW 530e xDrive, and 2022 BMW M550i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work
- Disconnect all battery GROUND LEADS .
- Remove rear UNDERBODY PROTECTION .
- Remove the transmission side UNDERBODY PLANKING
- Remove the tunnel connecting SUPPORT .
- If installed: remove the right and left TORSION STRUT where required.
- Remove complete EXHAUST SYSTEM .
- Remove transmission CROSS-MEMBER .
- Remove the HEAT SHIELDS .
- Remove the RETAINING PLATES
- Partially loosen the PROP SHAFT
- Remove the TRANSFER BOX (ATC 13-1).
- Version with gaiter (up to 11/2016) Version A:
Loosen band clamps (1).
Remove the bellows (2).
The dust guard (3) is not removed!
- Version with centrifugal disc (up to 11/2016) Version B:

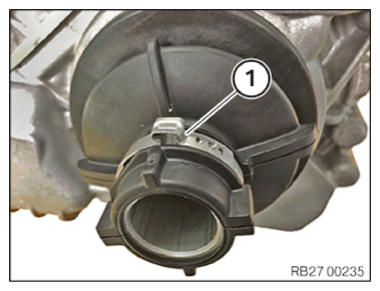

Release the hose clamp (1).
Remove the two-part centrifugal disc.
- Version with centrifugal disc (from 11/2016):
Use a slotted screwdriver to lever off the centrifugal disk (1) to the rear and remove.
- Remove protective cap (1) upwards using 2 slotted screwdrivers (2).
