Change transfer box oil (ATC 13-1)
WARNING: This page does not describe the selected car, but rather 26 other vehicles, including the 2023 BMW M550i xDrive, 2023 BMW 540i xDrive, 2023 BMW 530i xDrive, 2023 BMW 530e xDrive, and 2022 BMW M550i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
- Open the oil filler plug (1).
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.

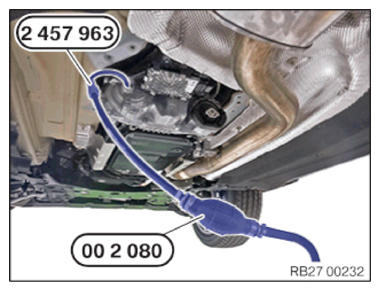

- Extract the transmission oil from the transfer box (VTG) using special tool 0 493 337 (00 2 080) and special tool 2 457 963.
- Top up transmission oil up to the lower edge of the opening for the oil filler plug using special tool 0 493 337 (00 2 080).
TECHNICAL DATA - TRANSFER BOX SPECIFICATION
| Filling capacity of transfer box | |
|---|---|
| Transfer-box oil | min. 0.7 L |
- Replace the oil filler plug (1).
Parts : Oil filler plug
- Tighten the oil filler plug (1).
TIGHTENING TORQUES SPECIFICATION
| Oil filler and oil drain plugs | ||
|---|---|---|
| M22 | Tightening torque | 60 Nm |
Follow-up work
- Install transmission CROSS MEMBER .
- Install rear UNDERBODY PROTECTION .
