Removing and installing or replacing trim for roof pillar at front (A-pillar), left or right (4' Series Convertible)
When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).
Release trim panel (1) inwards at clips (2) and feed out from instrument panel.
Installation note:
Make sure edge protection (3) is correctly fitted on trim panel (2).
Installation note:

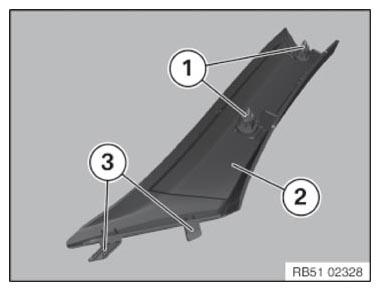

If necessary, lever out clips (1) remaining in bore holes.
If necessary, replace faulty clips (1).
Make sure guides (3) is correctly seated in associated mounts.
Guides (3) must not be damaged.
Position trim panel for front roof pillar (2) pre-assembled with clips (1) on associated bore holes and clip in.
