Removing and installing left or right front door trim panel (4' Series Gran Coupe Sedan)
Special tools required:
- 00 9 325
When working on trim panel components, make sure that visible surfaces are not scratched or damaged (e.g. by sharp-edged tools).
Necessary preliminary tasks:
- Remove SWITCH COVER
Release screws (1).
Tightening torque 51 41 1AZ .
Mask off front door in working area with plastic adhesive tape.
Do not, under any circumstances, pull on folding compartment.

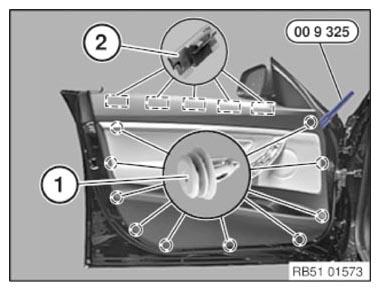

Detach door trim panel with special tool 00 9 325 in area A-pillar/mirror triangle starting at clips (1).
Pull off door trim panel from clamps (2).
Installation note:
Replace faulty clamps (2).
Disengage Bowden cable (1) for release lever first at counter support (2) and then at door lock (3).
Installation note:
Perform function check for door inside handle with door open and rotary striker lock closed.
Feed out door wiring harness from all brackets.
Unlock and disconnect all plug connections, then remove door trim panel.
Installation note:

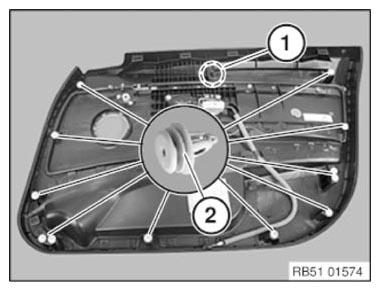

The centring pin (1) with the sealing ring must not be missing or damaged.
Replace faulty clips (2).
Installation note:
After assembling the door trim panel proceed as follows:
- Open side window
- Lock with ignition key
- Check for ease of movement on locking button linkage
- If necessary, align linkage
