Adjusting rear left or right front window (4' Series Gran Coupe Sedan)

Special tools required:

51 0 370
51 0 342
2 351 398
2 304 553
51 3 240
51 3 220

Configuring the correct setting will fulfil the following properties:

Seal against water ingress
No wind noise
No rattling
No unintentional reversing of side windows during closing (anti-trap safety function)

Prerequisites for correct adjustment:

Vehicle is supported on wheels at ground level
REAR DOOR correctly adjusted
Charge BATTERY

(Full operability of the power windows during the adjustment procedure is only assured with an external power supply)

Attention!

When closing, the door window glass must not jam on the trim strip in any area of the window (window glass breakage).

When performing measurement and adjustment work, do not slam the door (window pane may shatter).

Observe the checking and adjustment sequence!

Door window glass preload
Door window glass retraction depth/longitudinal direction

Door window glass preload

1.1 Preparation

NOTE: Check preload with fitted weather strip.

Open door; move door window pane into uppermost position, if necessary.

Insert special tool 51 0 370 in rotary striker of door lock and manually lock rotary striker (short lift activation).

Courtesy of BMW OF NORTH AMERICA, INC.

Close door carefully up to the point where special tool 51 0 370 magnetically adheres to striker (= defined door opening angle for measurement).

No force must be exerted on the door or door window pane during measurement.

1.2 Preload ideal setting

NOTE: No force must be exerted on the door or door window pane during measurement.

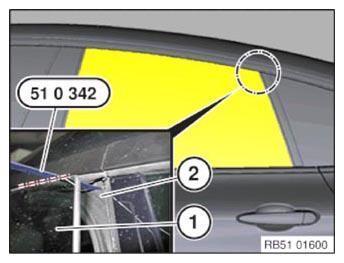

Bring special tool 51 0 342 into contact with door window glass (1) and window guide gasket (2).

Determine the dimension for the preload between the outer edge of the door window glass (1) and the gasket of the window guide (2).

Dimension = 46 ±1 mm

Courtesy of BMW OF NORTH AMERICA, INC.

1.3 Adjust preload

Open door and remove sealing cap on door window frame.

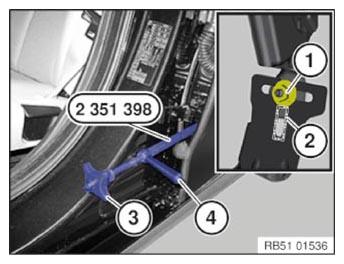

Feed special tool 2 351 398 into the door and apply to nut (1) and guide (2).

Slacken nut (1) with knob (3).

Turn lever (4) to adjust preload and tighten nut (1).

Tightening torque 51 35 2AZ .

Check adjustment, repeat procedure if necessary.

Remove special tool 51 0 370 from rotary striker of door lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Close door, completely open door window glass and remove sealing cap on door window frame.

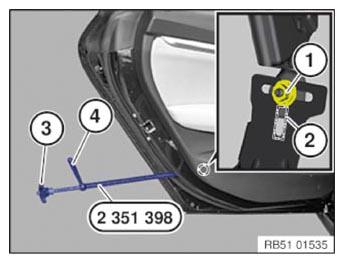

Feed special tool 2 351 398 into the door and apply to nut (1) and guide (2).

Slacken nut (1) with knob (3).

Turn lever (4) to completely move the front window lift rail outwards and tighten nut (1).

Tightening torque 51 35 2AZ .

Check adjustment, repeat procedure if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

Door window glass retraction depth/longitudinal direction

2.1 Longitudinal direction ideal setting

Close door and door window glass.

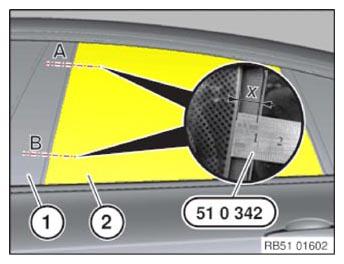

Measure distance (x) in area (A and B) from cover B-pillar (1) to rear door window glass (2) with special tool 51 0 342.

Area	Dimension (x)	Position of special tool 51 0 342
A	10 ±1 mm	Approx. 30 mm from trim strip at top
B	10 ±1 mm	Approx. 30 mm from trim strip at bottom
Parallelism deviation maximum 1.5 mm

Courtesy of BMW OF NORTH AMERICA, INC.

2.2. Retraction depth ideal setting

Rear door open.

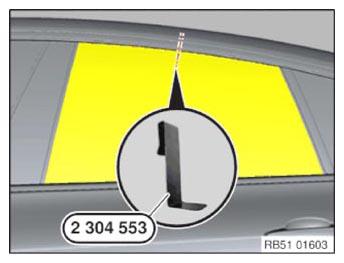

Attach special tool 2 304 553 to center of door window glass.

Close rear door.

Measure retraction depth

Retraction depth = 5 ±1 mm

IMPORTANT: Rear door must open and close without the door window glass touching the roof trim strip (risk of damage)

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Check play of special tool 2 304 553 to edge of door window pane before each measurement.

To correctly determine the dimension, transfer edge of profile seal (1) with special tool 51 0 342 to scale perpendicular to special tool 2 304 553.

Courtesy of BMW OF NORTH AMERICA, INC.

2.3. Adjust retraction depth/longitudinal direction

Remove OUTER WINDOW CAVITY COVER STRIP

NOTE: Avoid damaging door window pane (1) and window cavity through tool use.

When configuring setting, ensure that all special tools 2 304 553 continue to touch edge of door window pane without any gaps.

Slacken multipoint head cap screw (1) using special tool 51 3 240 until door window glass can be moved with little effort.

NOTE: Always slacken both multipoint head cap screws to avoid tension in the power window system.

Courtesy of BMW OF NORTH AMERICA, INC.

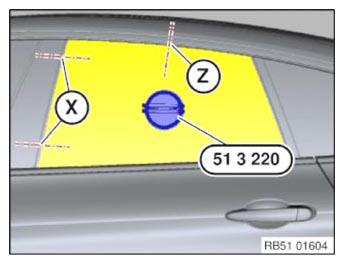

Attach special tool 51 3 220 to door window glass.

Adjust longitudinal direction (X) and retraction depth (Z) to door window.

NOTE: When adjusting retraction depth, ensure special tool 2 304 553 lays on door window glass free of play.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten multipoint head cap screw (1) using special tool 51 3 240 and torque wrench (1).

Tightening torque 51 35 3AZ .

IMPORTANT: Do not release or tighten multipoint head cap screw over inside of door (removed door trim panel; threaded bolt may snap).

Check adjustment, repeat procedure if necessary.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Checking run-in of door window glass:
