Removing and installing or replacing trim strip on roof gutter at left or right (4' Series Gran Coupe Sedan)
IMPORTANT:
Make sure that body is not damaged.
Open door at front and rear.

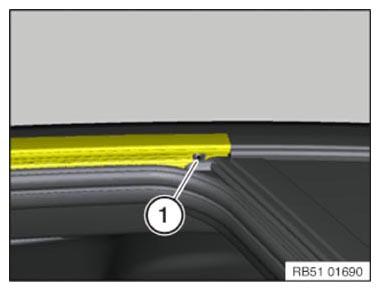

Release screw (1) in area of C-pillar.

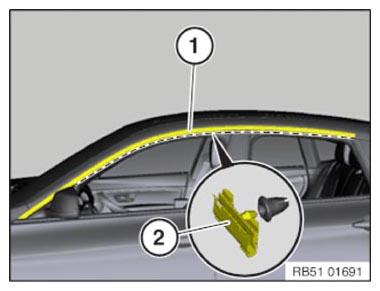

Starting from the front, use special tool 00 9 325 to release trim strip (1) from clips (2).
Installation note:
To prevent leaks and noises, check all clips (2) for visible damage.
Replace faulty clips (2)
Align clips (2) on body and fit trim strip (1)
IMPORTANT:
- Carry trim strip by its middle section only (risk of damage)
- Perform installation work with a second person helping
- Pre-positioning of trim strip
- Ensure gutter strip runs parallel to side frame (risk of breakage)
