Adjusting glass slide/tilt sunroof panel (4' Series Coupe, 4' Series Gran Coupe Sedan)

Special tools required:

00 9 315
00 9 340

Installation note:

Microencapsulated screws (Loctite) must be replaced and may not be reused
Screw connection must be completed within 20 minutes (start of curing)
Microencapsulated screws must not be retightened
Clean thread of nut beforehand in event of repeated use

Necessary preliminary tasks:

Remove both GAITERS .

Ideal setting:

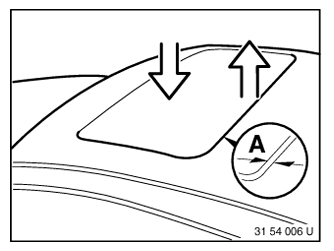

Distance:
- Distance A of glass slide/tilt sunroof panel (1) to roof (2) must be the same at the circumference
- A = circumference 6.0 ± 0.5 mm
Height:
- Front - flush to 0.75 mm deeper
- Rear - flush to 1.5 mm higher

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Measure front and rear height adjustment over the entire cover width.
Height over the entire cover width must lie within tolerance.
Measuring range only at straight range of glass slide/tilt sunroof panel.

Loosen left and right screws (1).

NOTE: For setting screws (1), only slacken until glass slide/tilt sunroof panel (2) can just be adjusted.

Tightening torque 54 12 01AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Height adjustment:

Check height of glass slide/tilt sunroof panel (1) in relation to roof (2) with special tool 00 9 315 .

Press glass slide/tilt sunroof panel upwards and downwards until the ideal position has been reached.

Setting distance:

Check distance between gasket and roof (2) with special tool 00 9 340 .

Courtesy of BMW OF NORTH AMERICA, INC.

It must be possible to slide the special tool against the same level of resistance.

Slide glass slide/tilt sunroof panel forward and back until ideal setting is reached.

Check function and adjustment.

INITIALIZE glass slide/tilt sunroof.
