Removing and installing/replacing V-strut, front axle support, left or right (4' Series Convertible)
IMPORTANT:
Observe SAFETY INFORMATION
for raising the vehicle
Driving without the trailing link is not permitted!
Driving without the trailing link is not permitted!
Necessary preliminary tasks:
- Remove FRONT UNDERBODY PROTECTION .

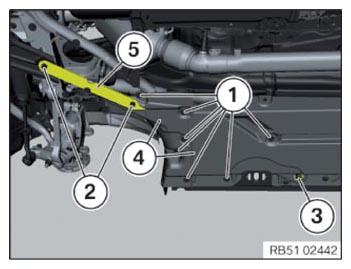

Release screws (1).
Unfasten screws (2).
Tightening torque 51 71 6AZ .
Release screw (3).
Tightening torque 51 71 7AZ .
Pull the trim panel (4) downwards slightly.
Remove V-strut (5) towards front.
Installation note:
Replace screws.
