Removing and installing/replacing storage compartment for first-aid kit and warning triangle (4' Series Gran Coupe Sedan)

Necessary preliminary tasks:

• REMOVE FLAP IN LUGGAGE COMPARTMENT TRIM PANEL ON LEFT

Version with automatic luggage compartment lid actuation:

Pull out electric motor (1) from fixture (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Take off holder (2).

Courtesy of BMW OF NORTH AMERICA, INC.

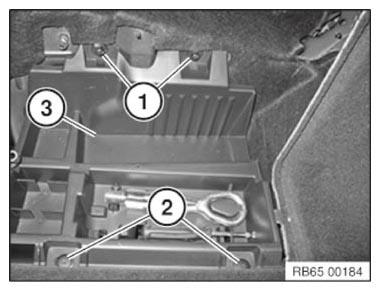

Unscrew nuts (1).

Release expanding rivet (2).

Lift out storage compartment (3).

Courtesy of BMW OF NORTH AMERICA, INC.
