Replacing left or right front door trim panel (4' Series Coupe/Convertible)
Necessary preliminary work:
- Remove DOOR TRIM PANEL .
The following parts must be fitted on the new door trim panel (if necessary, as a new part):
- DOOR OPENER (always fit new part)
- ARM SUPPORT .
- DOOR HANDLE .
- SPEAKER COVER .
- LIGHT STRIP .
Depending on version:
- LED for door opener
- FOOTWELL LIGHT .
- Crashpad (US version only)
Version with footwell light:

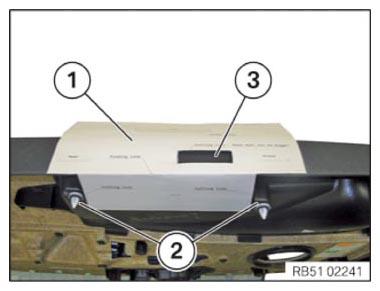

Cut out and fold template (1) in accordance with the markings.
Place template (1) between the clips (2).
Mark cut-out (3).
Remove template (1) and saw out marked cut-out (3).
A SPECIAL ELECTRIC CUTTER may be used together with a straight knife for sawing.
