Removing and installing/replacing additional brake light (4' Series Gran Coupe Sedan)
Special tools required:
- 00 9 325
When working on trim panel components, make sure that the sensitive surfaces are not scratched or damaged.

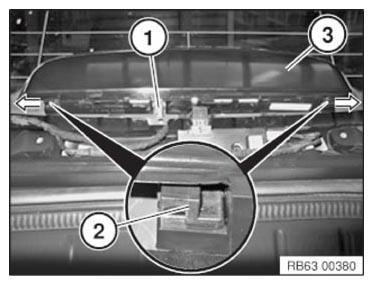

Release the trim panel (1) at the clips using special tool 00 9 325 and remove.
Unlock plug connection (1) and disconnect.
Unlock the slide (2) in the direction of the arrow and remove the additional brake light (3) from the rear window.
Installation note:
Make sure the slide (2) is correctly locked.
