Removing and installing/replacing luggage compartment light (4' Series Gran Coupe Sedan)

Special tools required:

• 64 1 020

Luggage compartment left/right:

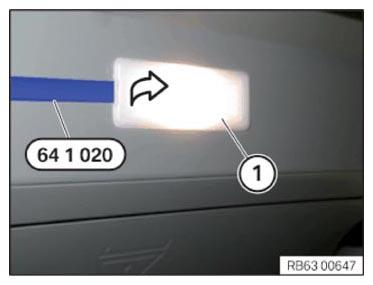

Lever out luggage compartment light (1) using special tool 64 1 020  in direction of arrow.

Disconnect plug connection underneath and remove luggage compartment light (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Center tailgate:

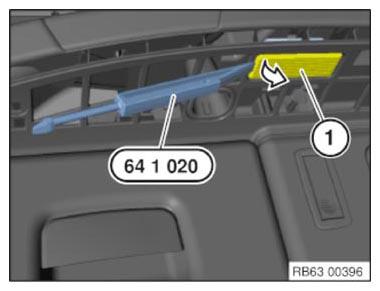

Lever out luggage compartment light (1) using special tool 64 1 020  in direction of arrow.

Disconnect plug connection underneath and remove luggage compartment light (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

• If necessary, remount BULB , note BULB TYPE .
