Removing and installing (replacing) left, rear light (on side wall) (4' Series Gran Coupe Sedan)

Unscrew clips (1).

Feed cover (2) in upward direction out of guides (3).

Installation note:

Make sure cover (2) is correctly seated.

Courtesy of BMW OF NORTH AMERICA, INC.

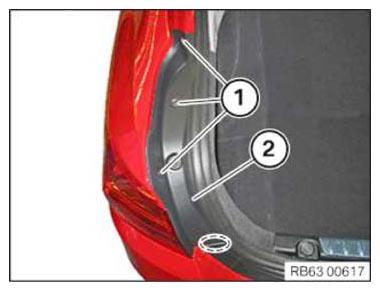

Installation note:

Guides (1) on water channel cover (2) must not be missing or damaged.

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Risk of paint damage!

Tape off entire area (1) with yellow plastic adhesive tape.

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew nuts (1).

Tightening torque 63 21 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: The rear light is secured in the body with a latch!

In the interests of avoiding damage to the rear light and the paintwork the following text describes how to release the latch.

NOTE: Similar to graphic.

Detach the rear light (2) in direction of arrow from the latch mechanism (1).

Unlock associated plug connection and disconnect.

Remove rear light (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Make sure that rear light (2) is correctly locked.

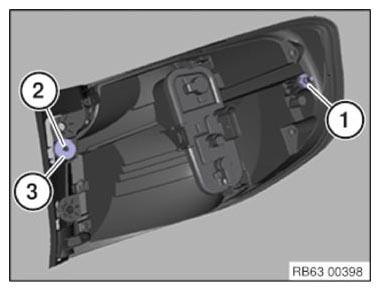

Installation note:

Latch (1) must not be missing or damaged.

Guide (2) and seal (3) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Convert BULBS if necessary.
