Replacing the LED module for left daytime riding lights (4' Series Coupe/Convertible, 4' Series Gran Coupe Sedan)

Removal:

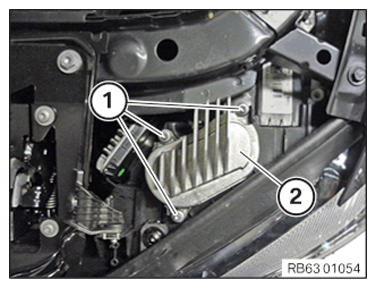

Release screws (1).

Guide the LED module (2) out of the headlight towards top.

Courtesy of BMW OF NORTH AMERICA, INC.

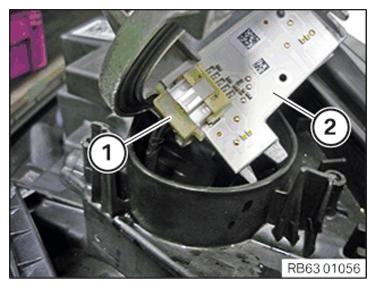

Unlock connector (1) from LED module (2) and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

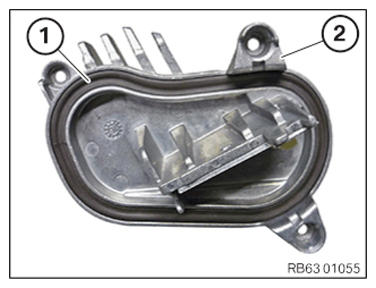

Seal (1) on LED module (2) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect the connector (1) from LED module (2) and lock it.

Courtesy of BMW OF NORTH AMERICA, INC.

Position the LED module (2).

Tighten down screws (1).

Tightening torque 1.65 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Carry out PROGRAMMING/ENCODING .
