REP-TAT-P-1136-06 Releasing the VANOS central valve

WARNING: This page is about a different car, the 2018 BMW 340i, 2017 BMW 340i, and 2016 BMW 340i. However, it is still accessible from the selected car via links, so may be relevant.

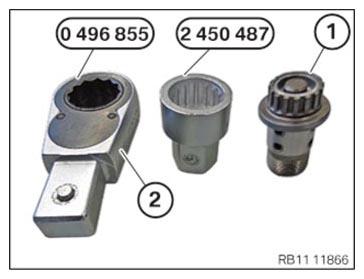

To release the VANOS central valve (1), use the reversible ratchet (2) from the special tool 0 496 855 with the special tool 2 450 487.

Courtesy of BMW OF NORTH AMERICA, INC.

To release the VANOS central valve (1), use the special tool 0 496 855.

Courtesy of BMW OF NORTH AMERICA, INC.

Release the VANOS central valve of the intake adjuster (1) with special tool 0 496 855 or 2 450 487

Courtesy of BMW OF NORTH AMERICA, INC.

Release VANOS central valve of the exhaust camshaft adjuster (1) with the special tool 0 496 855 or 2 450 487.

Courtesy of BMW OF NORTH AMERICA, INC.
