REP-TAT-P-1165-14 Adjusting the electric wastegate valve actuator
WARNING: This page is about a different car, the 2018 BMW 340i, 2017 BMW 340i, and 2016 BMW 340i. However, it is still accessible from the selected car via links, so may be relevant.
- Perform the following work steps only when the setting for the electric wastegate valve adjuster is specified by the vehicle diagnosis.
- Connect diagnostic system:
- Service functions
- Drive
- Engine electrical system
- Adjustment programs
- Adjusting wastegate linkage
- Connect connector (1).

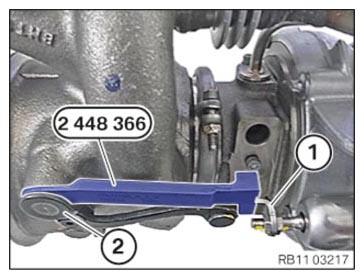

- Mount the special tool 2 448 366 on the wastegate linkage (1) and over the shaft (2).
NOTE:
The adjustment nuts must be locked using 2 open-end wrenches. If only one open-end wrench is used, there is a risk of the electrical controller drive being damaged.

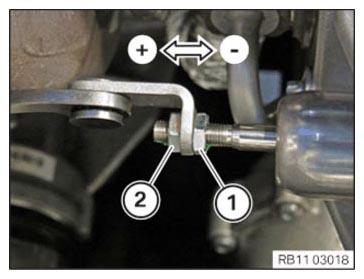

- Mark the lock nut (1) and the adjustment nut (2) with a colored mark.
- Loosen lock nut (1).
- According to the diagnostic function: Shorten the adjustment travel (-) or lengthen the adjustment travel (+).
One rotation of the adjustment nut = 0.75 mm of the adjustment travel
- Example 1:
- Measured actual value (via diagnostic function) = 0.75 mm
- Required correction: +0.75 mm divided by 0.75 mm = +1.0 revolutions
For the correction of the setting of the control rod: Adjust the lock nut (1) in direction (+) by 1.0 revolutions and then readjust the adjustment nut (2).
TIGHTENING TORQUES SPECIFICATION
| Lock nut to control rod | |
|---|---|
| Use the second open-end wrench for counter support! | |
| Use the special tool (gauge) to align the control rod! | 7.5 ± 1.2 Nm |
- Example 2:
- Measured actual value (via diagnostic function) = -1.5 mm
- Required correction: -1.5 mm divided by 0.75 mm = 2.0 revolutions
For the correction of the setting of the control rod: Adjust the adjustment nut (2) in direction (-) by 2.0 turns and then readjust the lock nut (1).
TIGHTENING TORQUES SPECIFICATION
| Lock nut to control rod | |
|---|---|
| Use the second open-end wrench for counter support! | |
| Use the special tool (gauge) to align the control rod! | 7.5 ± 1.2 Nm |
- Disassemble the special tool 2 448 366 from the wastegate linkage (1) and over the shaft (2).
- After setting: Recheck the basic setting with the diagnostic function.
