REP-TAT-P-1165-02 Install electric wastegate valve actuator
WARNING: This page is about a different car, the 2018 BMW 340i, 2017 BMW 340i, and 2016 BMW 340i. However, it is still accessible from the selected car via links, so may be relevant.

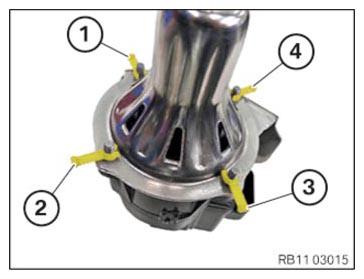

- Position installation aids (1) to (4).
- (4) Check correct installation of the installation aids (1)

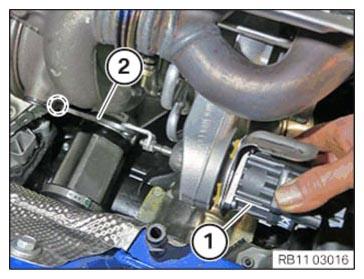

- (1) Install electric wastegate valve actuator and position correctly.
- Attach the wastegate linkage (2) in the marked area to the linkage of the wastegate valve.
- Screw all of the bolts of the electric wastegate valve actuators in by 1.5 turns.
- Disassemble all installation aids.
- Mount the clamp (1).
- Tighten the screws (1).
TIGHTENING TORQUES SPECIFICATION
| Electrical controller drive to exhaust turbocharger | |
|---|---|
| M4 Disassemble all installation aids! |
3 ± 0.5 Nm |
- If necessary, connect connectors (1) and lock.
The connector must engage audibly.
