REP-TAT-P-1165-01 Remove electric wastegate valve actuator
WARNING: This page is about a different car, the 2018 BMW 340i, 2017 BMW 340i, and 2016 BMW 340i. However, it is still accessible from the selected car via links, so may be relevant.

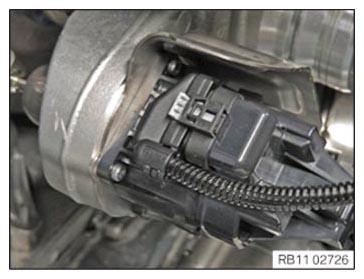

- Where appropriate, unlock connector (1) and detach.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
 Courtesy of BMW OF NORTH AMERICA, INC.
|
 Courtesy of BMW OF NORTH AMERICA, INC.
|

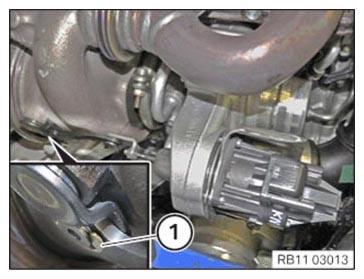

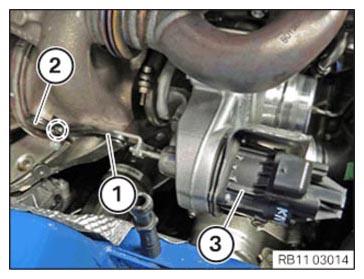

- Detach wastegate linkage (1) from the linkage of the wastegate valve in the marked area (2).
- Remove electric wastegate valve actuator (3).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
