REP-TAT-P-1142-25 For replacement: Remounting the oil feed line
WARNING: This page is about a different car, the 2018 BMW 340i, 2017 BMW 340i, and 2016 BMW 340i. However, it is still accessible from the selected car via links, so may be relevant.
Remove oil feed line
- Loosen screw 1
.
- 2
Remove oil feed line.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
Install oil feed line

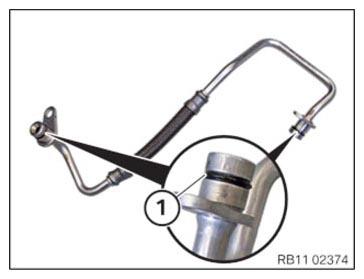

- Replace the O-rings 1
.
Parts:
O-rings
 Courtesy of BMW OF NORTH AMERICA, INC.
|

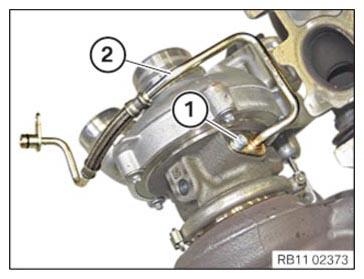

- Position oil feed line 2
on exhaust turbocharger.
- Tighten down screw 1
.
TIGHTENING TORQUES SPECIFICATION
| Oil feed line to exhaust turbocharger |
| M6 x 12 |
tightening torque |
8 Nm |
Courtesy of BMW OF NORTH AMERICA, INC.
|
