REP-TAT-P-1153-02 Install connecting bracket on the engine block

WARNING: This page is about a different car, the 2018 BMW 340i, 2017 BMW 340i, and 2016 BMW 340i. However, it is still accessible from the selected car via links, so may be relevant.

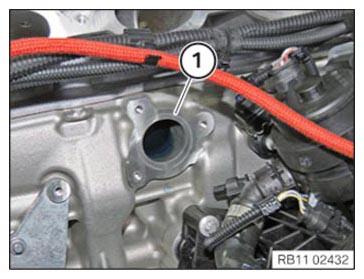

Clean sealing surface (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Install connecting brackets (2) and connect to connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Position connecting brackets on engine block and fasten using screws (1).

TIGHTENING TORQUES SPECIFICATION

Connecting bracket to engine block
M6 x 25	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Insert coolant hose on the connecting bracket.
The marks must be aligned.

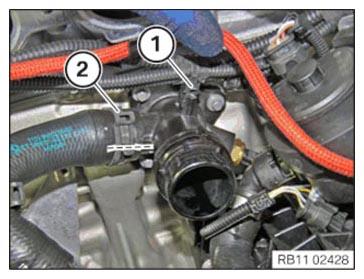

Fasten the coolant hose using the hose clamp (2).
Clip the wiring harness to the connecting bracket using clamp (1).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Make sure that the connections are locked correctly. The locks must engage audibly.

Lock coolant hose (1) and insert on connecting bracket.

Courtesy of BMW OF NORTH AMERICA, INC.
