REP-TAT-P-1153-02 Install heat management module

WARNING: This page is about a different car, the 2018 BMW 340i, 2017 BMW 340i, and 2016 BMW 340i. However, it is still accessible from the selected car via links, so may be relevant.

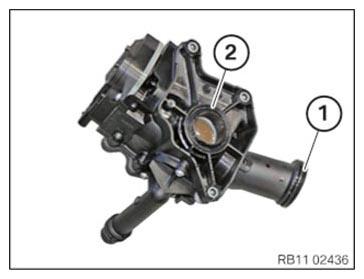

Replace the O-Ring (1) and gasket (2).

Parts: O-ring and gasket

G12729044

Courtesy of BMW OF NORTH AMERICA, INC.

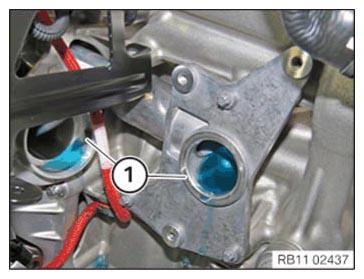

Clean sealing surface (1).

G12729045

Courtesy of BMW OF NORTH AMERICA, INC.

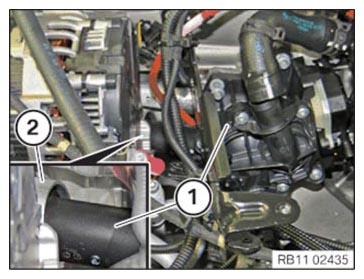

Feed out the heat management module (1) to the outside rear out of the component carrier (2).

G12729043

Courtesy of BMW OF NORTH AMERICA, INC.

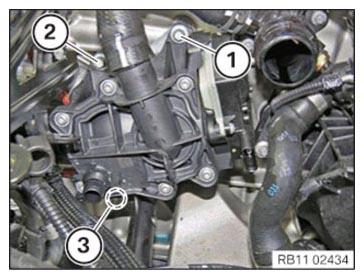

Tighten the screws (1) to (3).

TIGHTENING TORQUES SPECIFICATION

Heat management module to engine block
Captive screws	8 Nm

G12729042

Courtesy of BMW OF NORTH AMERICA, INC.

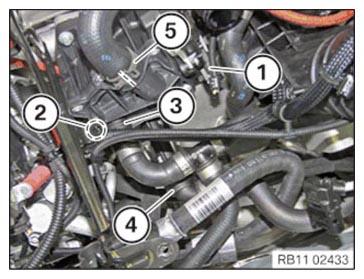

Insert coolant hose onto the heat management module and fasten with the clamp (5).

See that the marking lines up.

NOTE: Make sure that the connections are locked correctly. The locks must engage audibly.

Connect and lock the coolant hoses (3) and (4).
Clip in positive battery cable in area (2).
Connect connector (1).

G12729041

Courtesy of BMW OF NORTH AMERICA, INC.
