REP-TAT-P-1151-02 Installing coolant pump with support
WARNING: This page is about a different car, the 2018 BMW 340i, 2017 BMW 340i, and 2016 BMW 340i. However, it is still accessible from the selected car via links, so may be relevant.

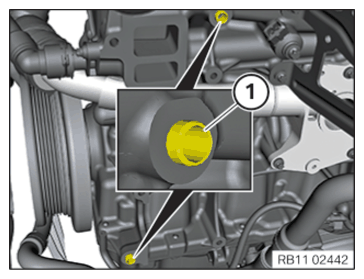

- Check the fitting sleeves (1) for damage, replace if necessary (1).
NOTE:
The sealing surfaces must be free from oils grease and cleaning agents.

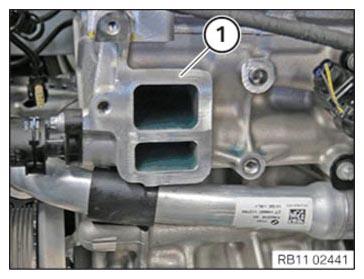

- Clean sealing surface (1).

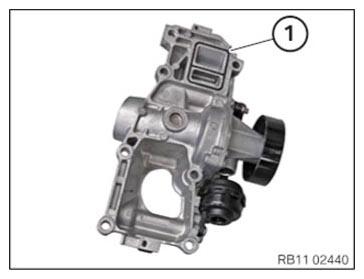

- Replace gasket (1).
Parts: Gasket
- Replace O-ring on the heat management module.
Parts: O-ring
- Position the coolant pump (2) with support on the fitting sleeves.
- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| Coolant pump with function carrier on crankcase | ||
|---|---|---|
| M8 x 35 | tightening torque | 19 Nm |
- Tighten down screws (2).
TIGHTENING TORQUES SPECIFICATION
| Coolant pump with function carrier on crankcase | ||
|---|---|---|
| M8 x 35 | tightening torque | 19 Nm |
- Connect vacuum hose (1) and attach to the clamp.
